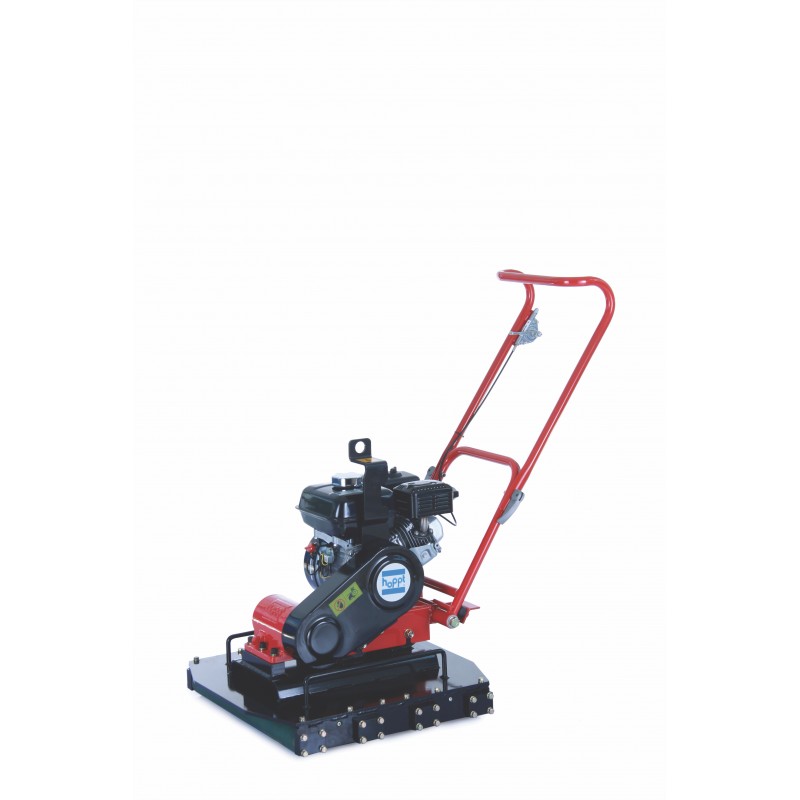

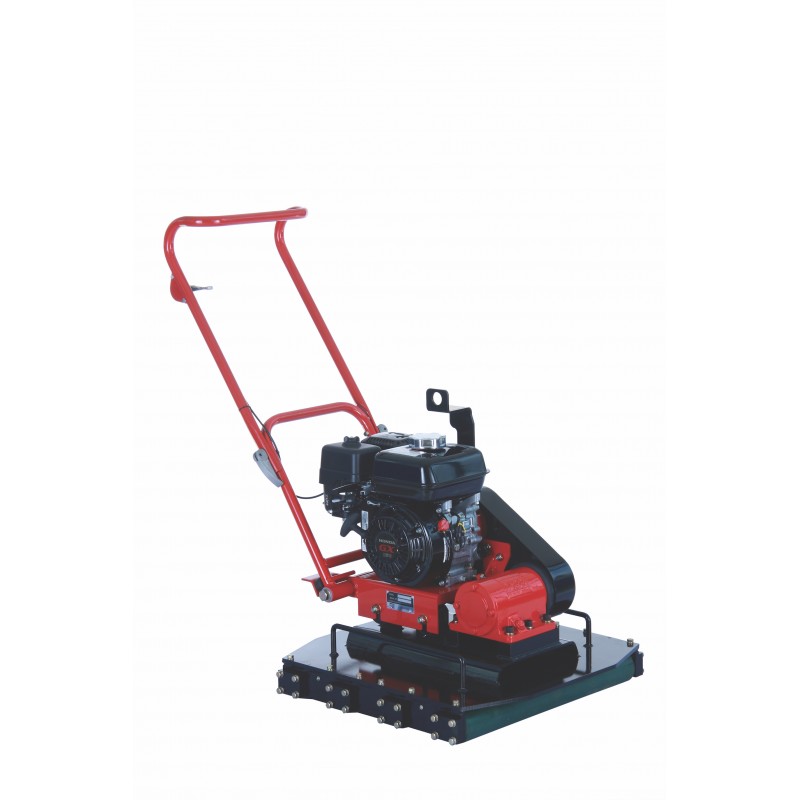

PCPT90P - Vibratory Pavement Compactors
HOPPT® PCPT90P Pavement Compactors offer engine options powered by the durable and reliable ROBIN® to the renowned HONDA® petrol engines, together with other options, to cater for your job needs with maximum productivity and power.
PCPT90P
| Machine Dimension – L x W x H (mm) | 1,064 x 669 x 1,091 |
|---|---|
| Shoe Size – L x W (mm) | 665 x 620 |
| Operating Weight (kg) | 123 |
| Centrifugal Force – kgf (kN) | 1,050 (10.3) |
| Vibration Frequency – Hz (vpm) | 94 (5,640) |
| Compaction Area (m²/h) | 600 - 700 |
| Engine Options | Honda GX160 @ 3.6kW (4.8hp) 4-Stroke Petrol Robin EX17 @ 4.2kW (6.0hp) 4-Stroke Petrol Robin EX20-3C @ 3.7kW (5.0hp) 4-Stroke Petrol |
HOPPT® Pavement Compactors feature a unique Rubber Roll-Bar system that allows for compaction of floor tiles, pavement bricks in landscaping and in areas that needs special prevention from breakages or damages. With the Rubber Roll-Bar system it allows flexibility for individual change of the roll-bar, therefore, saving cost.
